The Tweedtone10 from Sonic Pipe Amps in Tweed Hand Wired All Tube


The 5 watt, 1x8 combo has been a staple of the amp world since the early 1950s. It has withstood the test of time because, through its simplicity, amazing tones are achieved. The Tweedtone10 by Sonic Pipe Amplifiers features a larger 10" speaker that increases the frequency response and has its own spin that makes this a must-own.

Let's start with the ALL tube design. No solid-state rectifier here, this one features a 6Z4 Rectifier Tube that allows the amp to sound open and rich. You'll hardly miss reverb with how harmonically rich and complex this little guy sounds.

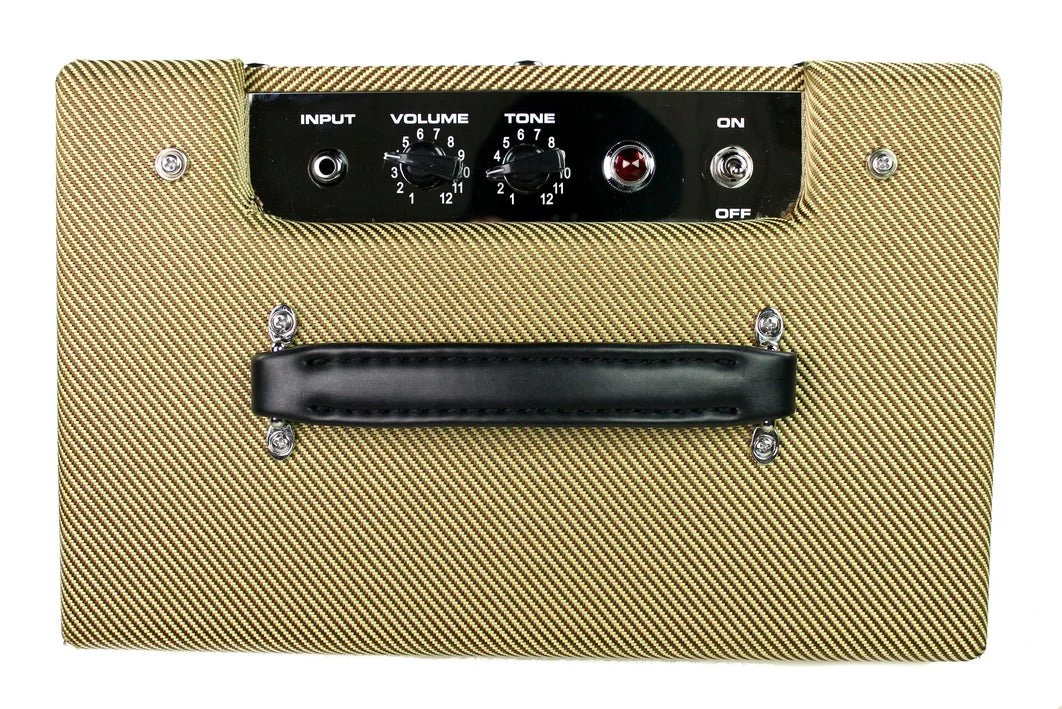

The controls are very simple. Volume and Tone. Personally, I dime the volume and roll off the guitar's volume to clean it up which allows you to tap into the array of overdriven tones the Tweedtone5 has. The tone control allows for the right amount of variation to brighten up a dark guitar and to warm up a bright instrument. Though the circuit is simple, the sound it creates is harmonically complex.

It is powered by a single 6V6 power tube that allows this amp to break up with classic overdrive when pushed and purr with warm sweetness when you back off the volume on your guitar. With the amp dimed and a Tele with the volume at 4, I achieved some of the warmest, sweetest tones I have heard in recent memory. Bringing the guitar volume up brings on some raucous, natural overdrive that can easily be tamed by slightly rolling off.

The Carbon Composition Resistors and Orange Drop Capacitors are very reliable, provide long life, and are very quiet when used in an audio circuit.

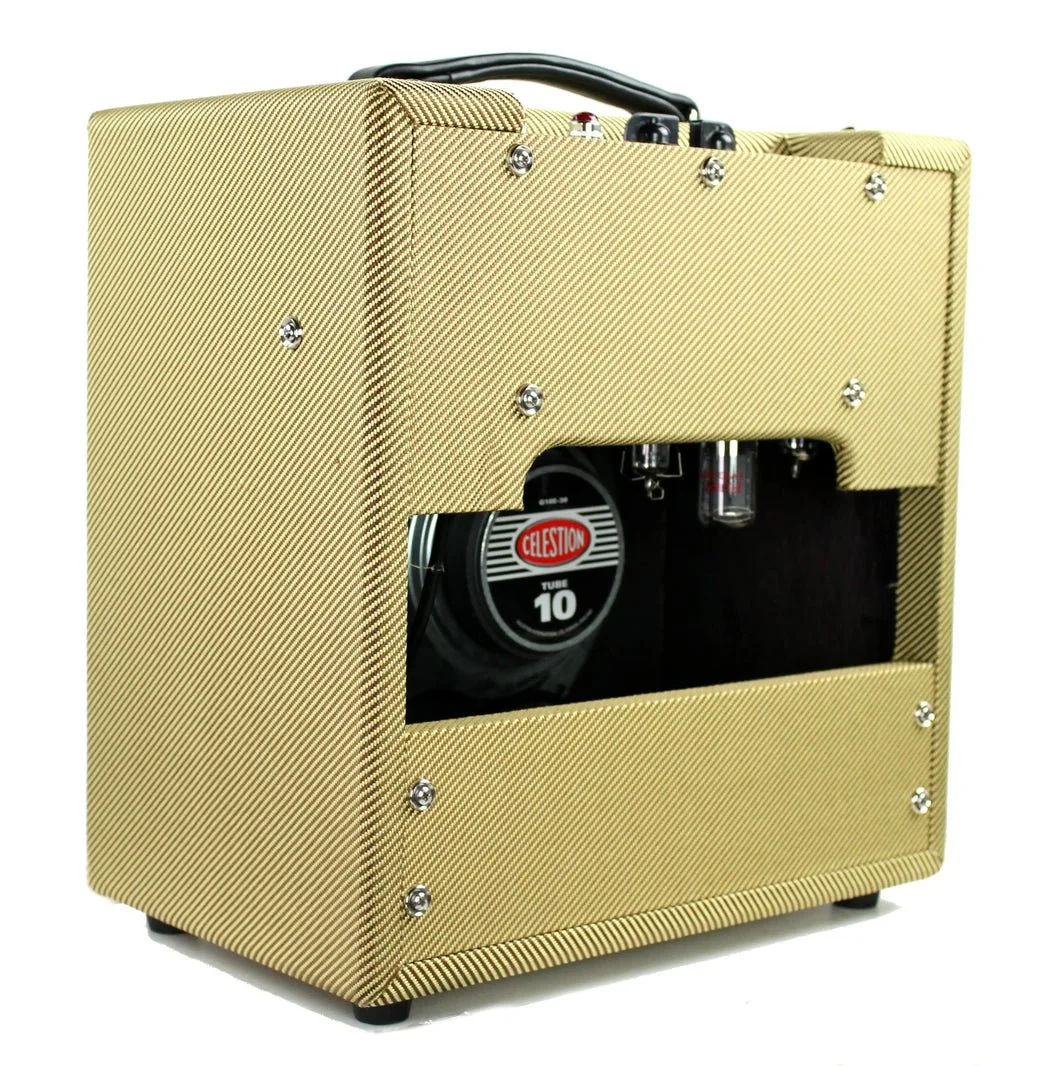

The speaker is a 10" Celestion that makes this amp sound fantastic no matter what kind of guitar you are playing. The bottom end never gets loose or flabby, even Les Paul's and ES-335's maintain their articulation.

The cabinet is made from 18mm pine which is sturdy enough to handle the rigors of the road, plus it truly contributes to the tone. The entire cabinet resonates, only adding to the fullness and making it an inspiring playing experience.

The Tweedtone10 Features

   •    Handmade by Sonic Pipe Amplifiers
   •    Standard Tweed Dress
   •    Single-ended Class A design (Cathode Bias)
   •    Hand-wired tagboard construction
   •    1- 6V6 output tube
   •    1- 12AX7 preamp tube
   •    1- 6Z4 vacuum tube rectifier
   •    One 1/4 inch input jack
   •    Carbon Composition Resistors
   •    Orange Drop Capacitors
   •    Volume Control (that goes to 12!)
   •    High/Low Tone Control
   •    Black Chicken-head knobs
   •    Polished Chrome Control Panel
   •    Celestion 10" Speaker
